Recirculating aquatic hatching system

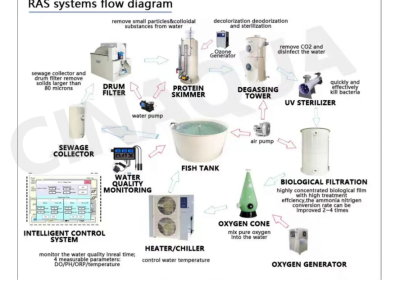

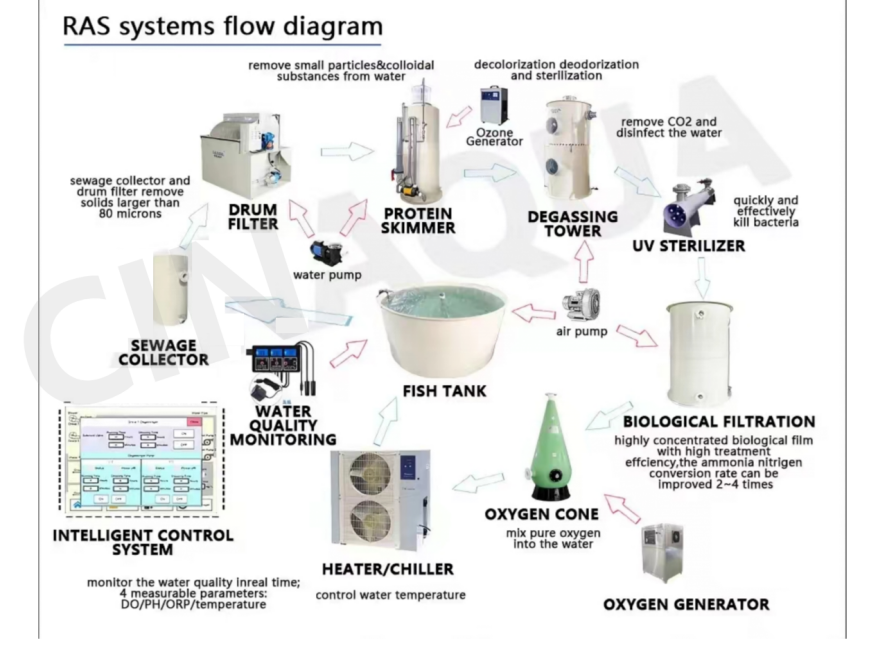

Recirculating aquatic hatching system is technical system that uses mechanical and bio-filters to grow fish or other aquatic organisms, with the main purpose of reducing water consumption by reusing water and improve the efficiency of aquatic hatching. Such system, which typically include fish tanks, filtration units, water treatment equipment and other components, remove solid waste, nutrients, toxins and carbon dioxide from the water, while increasing the dissolved oxygen content of the water, providing a clean, suitable environment for fish to grow.
In the recirculating water hatching system, the stability of water quality is the key,
because it directly affects the success rate of fish eggs hatching and the growth of fish fry. The system provides the best growing environment for fish by precisely controlling water temperature, oxygen level, light and other conditions. This control also helps reduce the spread of diseases and parasites because the system is closed and relatively isolated from the outside environment.
The advantages of recirculating water incubation system include:
1. Water conservation: By recycling water, the need for fresh water is greatly reduced.
2. Efficient farming: The system provides a stable and controlled environment conducive to the rapid growth and high survival rate of fish.
3. Environmentally friendly: reduce waste emissions caused by farming and reduce the impact on the environment.
4. Disease control: Closed system reduce the risk of disease transmission and reduce the use of drugs.
In addition, the recirculated water hatching system also enables continuous production throughout the year, regardless of seasons and climates, providing a stable supply of fish to the market. However, there are some challenges with such system, such as high initial investment costs, high energy consumption and high requirements for technical maintenance.

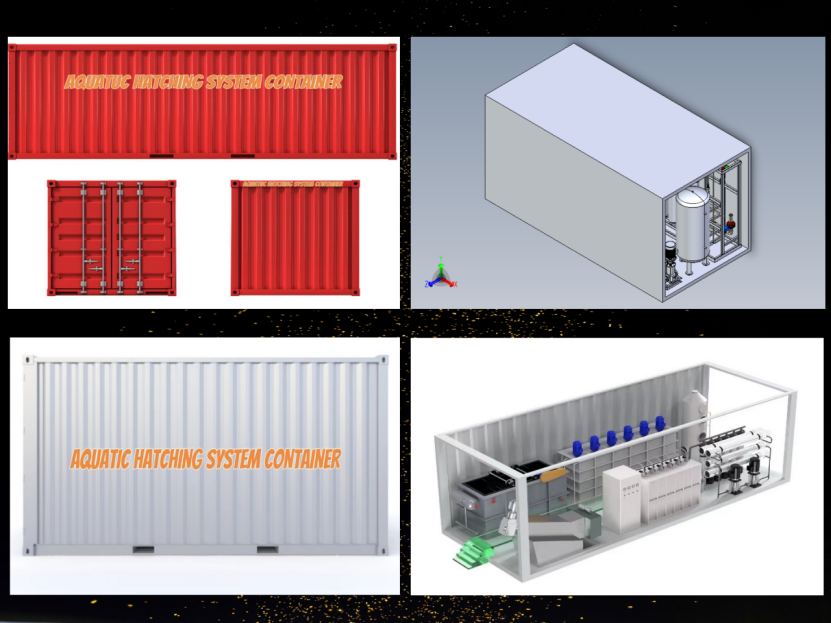

Aquatic Hatching System Container
The Hatching container system developed by the company includes insulated container, breeding tank, bio-filter, protein separator, oxygen supply system, constant temperature system, water quality testing system and light system, etc., to ensure stable water quality and achieve the goal of high hatching rate, high survival rate, zero discharge and no water change.

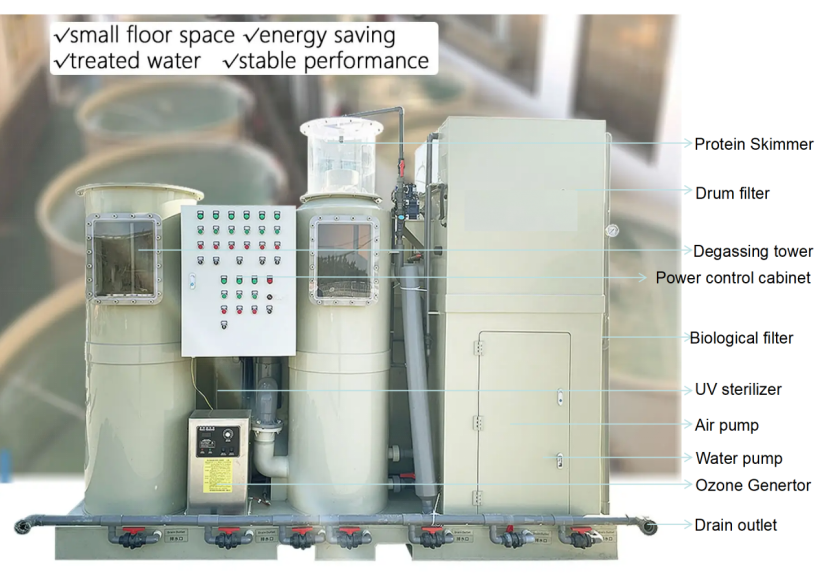

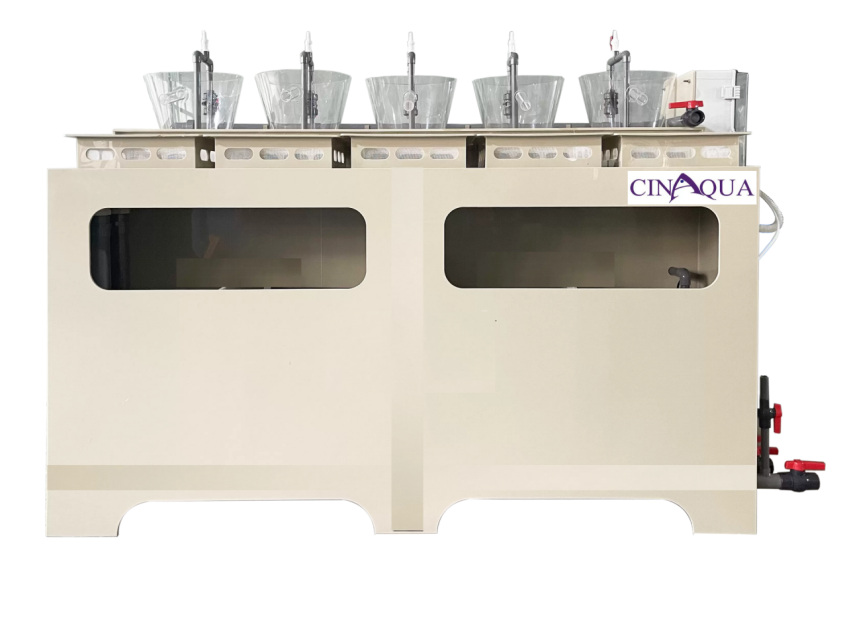

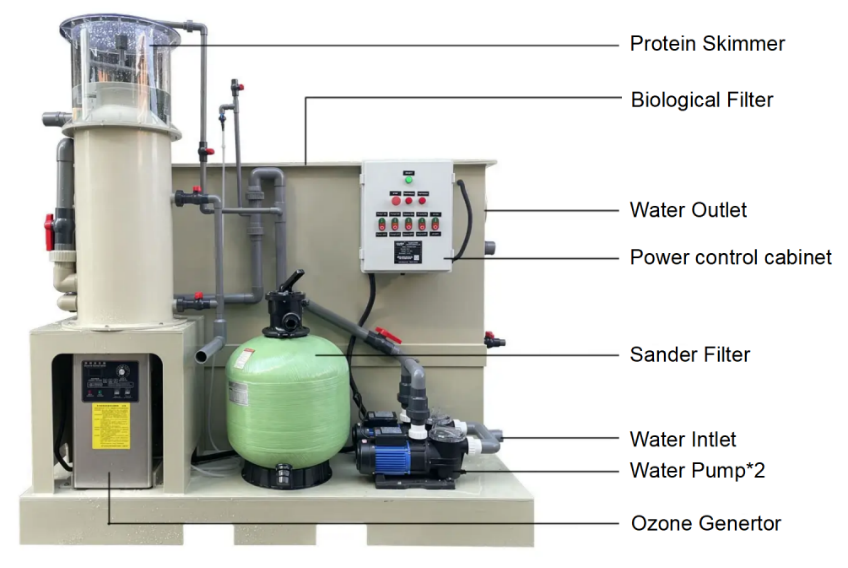

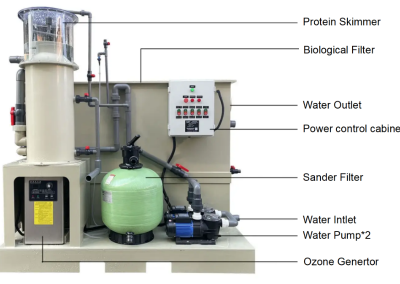

Mini Water Treatment Machinery
The small scale research re-circulation system with integrated filtration unit, Developed for research purposes it also can be used for restaurant fish and shrimp temporary breeding and fish and shrimp hatchery. The system can be operated as a stand alone or connected with other systems. They are the necessary system devices for our company’s small aquatic hatching containers.

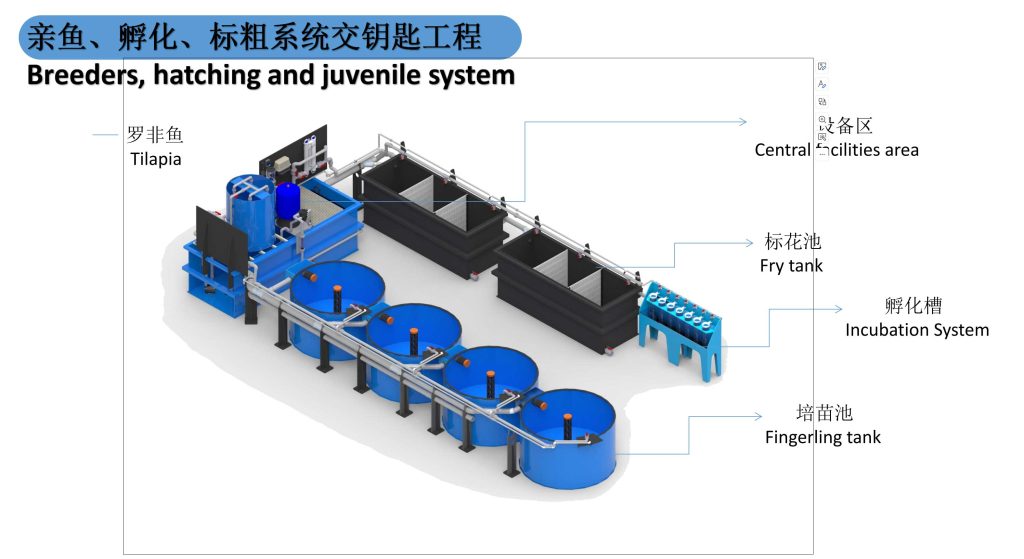

Integrated submerged fish egg incubator
Hatchery and fingerling rearing with complete RAS based on the requirements of the local water conditions. Water is permanently fed into the system from a local well. The system can be switched to RAS in case the water conditions are not optimal. The system was installed to produce fish for the local market.
we have developed this system with bio- filter+UV, then there will be better to keep not too much water exchange, then the 2.0PH heater can keeping running in 2-4hours, then it can be enough, so, this will save many electric cost for you.
Size:2200*900*1500mm
Incubation capacity about:300,000-500,000pcs
Applicable species:tilapia,catfish.
Power：1.1kw

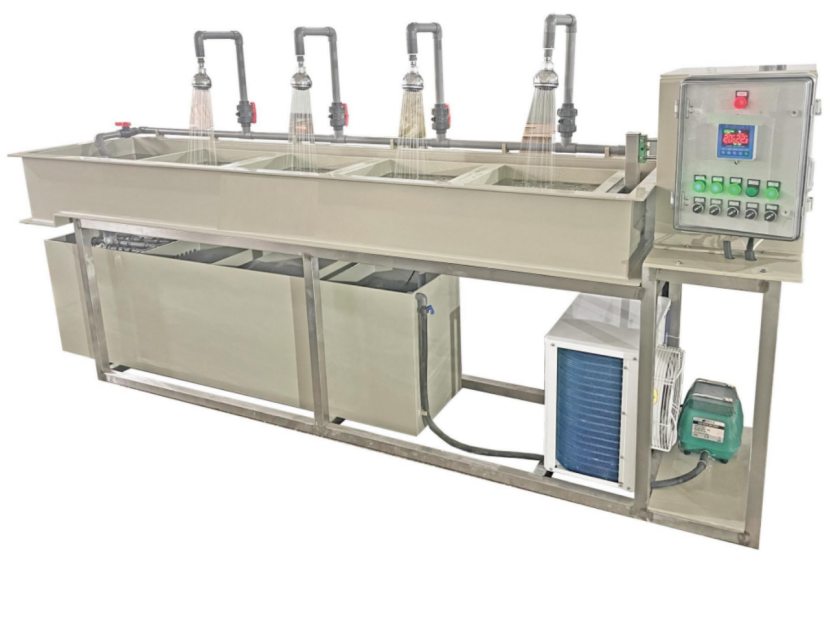

Horizontal Static Loading Egg Incubator
Horizontal static Incubation system (Sturgeon Incubation system)
The water body of the system adopts a mechanical arm to simulate the water flow, so that the fish eggs can achieve a suitable environment like the mother’s arms, so as to improve the hatching rate. This product is suitable for hatching large egg diameter fish with a long incubation period. When water quality is stable for a long time, we are equipped with filtration, sterilization and constant temperature control to achieve water quality stability. Hatching tank eggs are flat, static, suitable for thick-sac eggs that are not squeezed.
Size :3120 *675*1325mm
Incubation capacity about:150,000pcs
Applicable species: Salmon, trout, Sturgeon，etc
Power:1kw

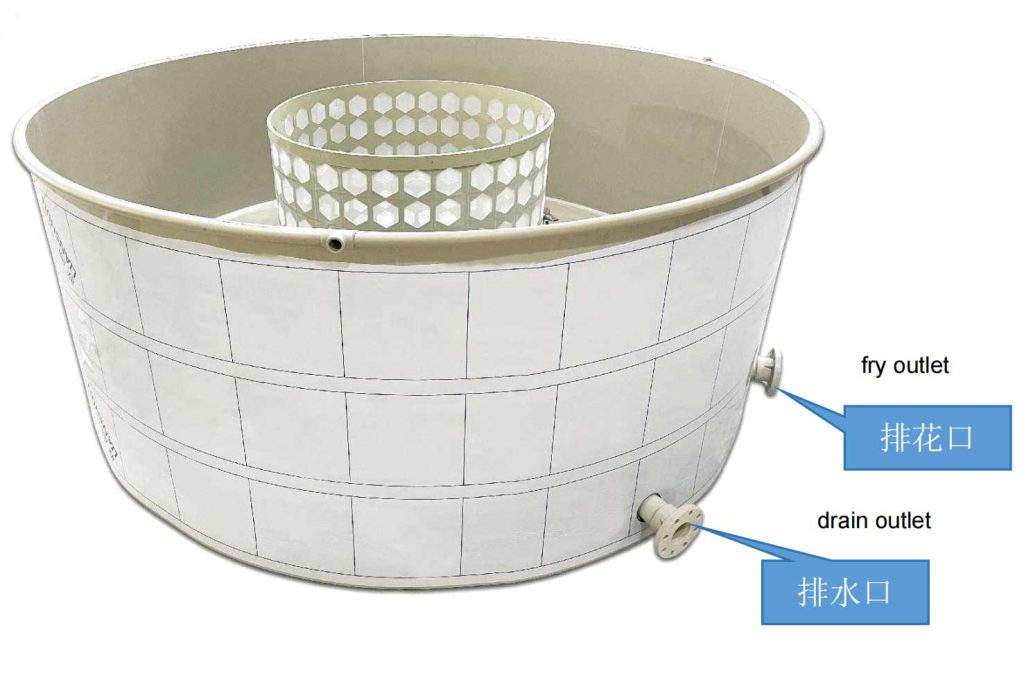

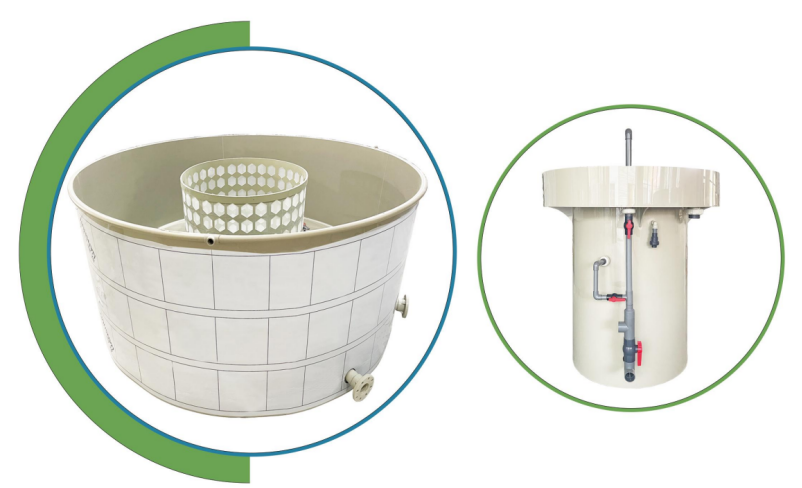

Loop hatching tank
The circular hatching tank uses several groups of high-pressure nozzles to feed water at the bottom and automatically form a swirl flow along the direction of water intake. The purpose is to use the fast water flow to help the fish eggs demembrane, thereby improving the hatching efficiency. Therefore, the ring hatch is suitable for hatching high viscosity, floating fish eggs, such as mandarin fish, dace, four fish and so on. For some cases where artificial egg retrieval is not possible, it can be combined with a link spawning tank to reduce the loss caused by the transfer of fish eggs.
Self-cleaning incubator
The hatching tank is suitable for hatching fish eggs in large fishing grounds, such as four Chinese traditional fish, dace, Bream, etc. The size can be customized. The top is equipped with an automatic cleaning handle, which can self-clean the discharge of the fish egg membrane and the water outlet, and adopt an independent cleaning water source, which is convenient for customers to control separately, especially when the water body of the hatching species and the cleaning water source are different, which can be adjusted by itself. The bottom is a cone design, and water from the bottom, the top of the water, to achieve automatic flow to reduce the loss of air source, simulate water flow, reduce the damage of the bottom extrusion of fish eggs. It is mostly use for big quantity egg ≦12hours hatchery type needed.

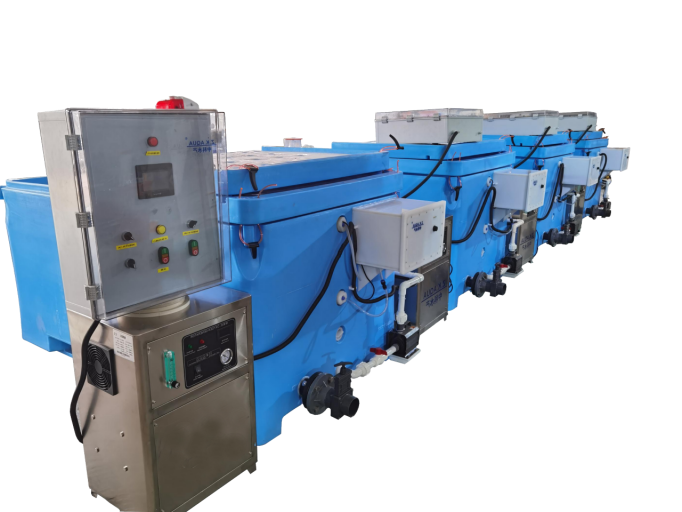

The Live fish Container
CHARACTERISTIC
The Live fish container is mainly according to customer needs, using Insulation PE with PUR container, designed I control pannel system to ensure oxygen suppling, Air pume source with battery 8 hours to avoid lost when uninterrupted operation, and pure oxygen supply can improve transport density; At the same time with circulating water design, fish tank automatic discharge outlet.
Project Cases

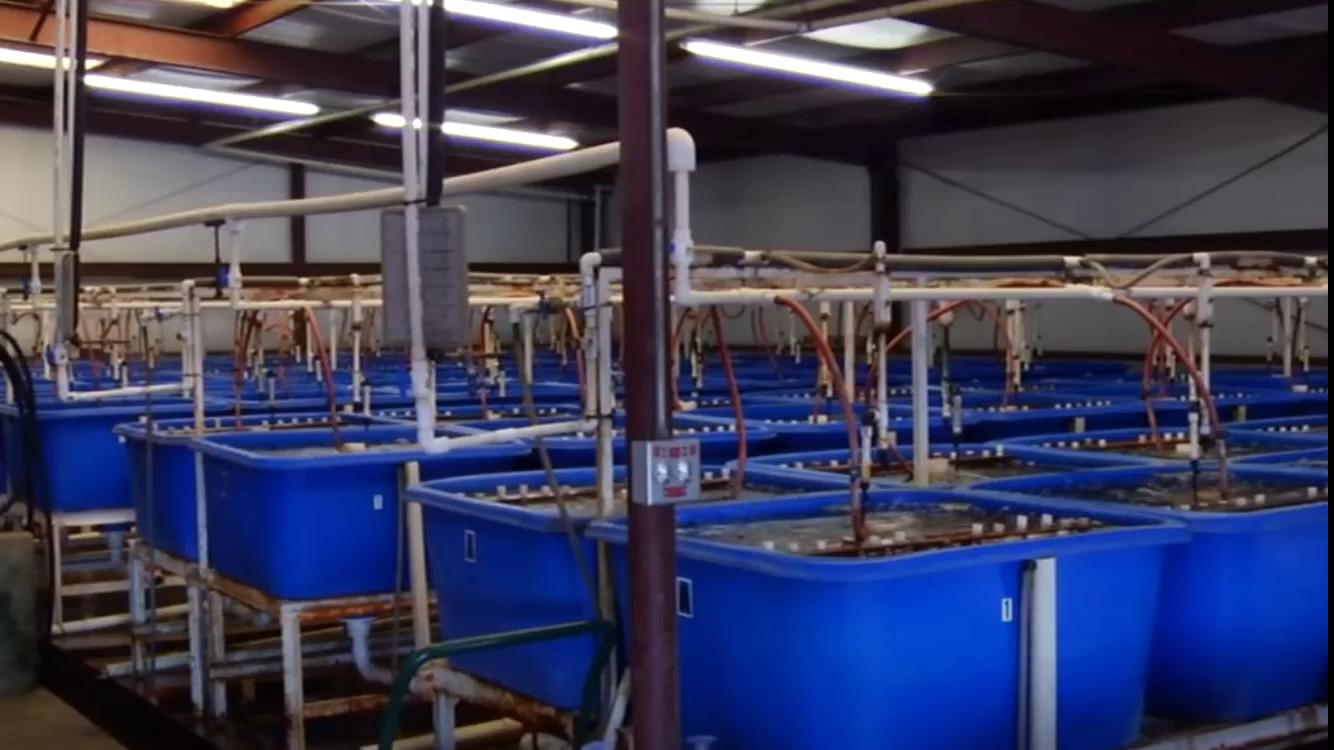

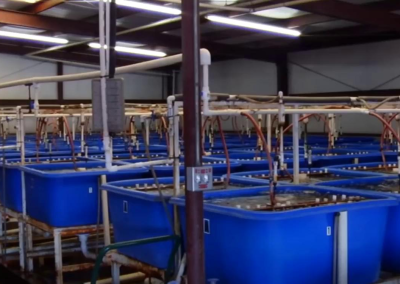

Project Norway Category Sea bass

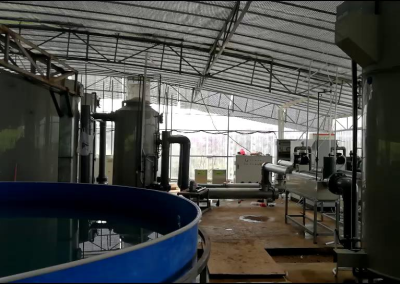

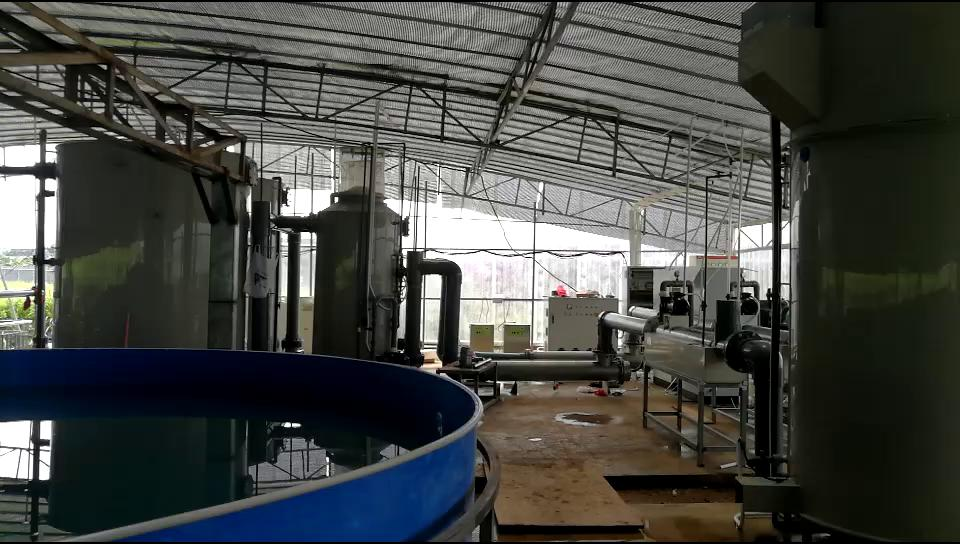

Project Hainan Category Grouper

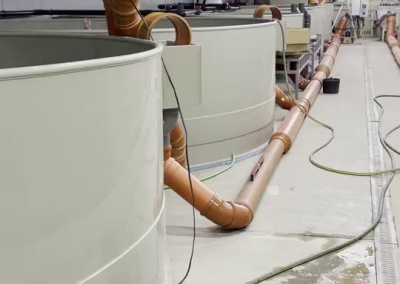

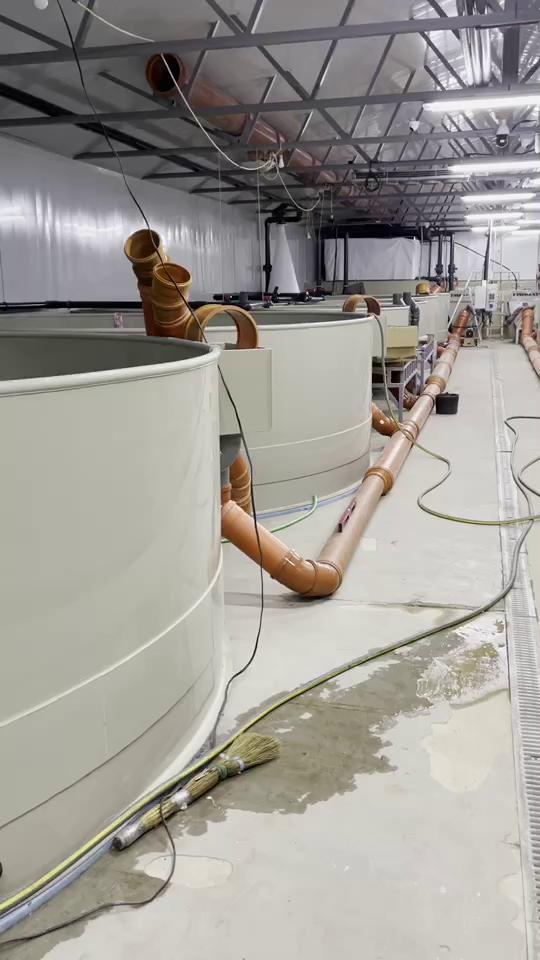

Project Uzbekistan Category Carp

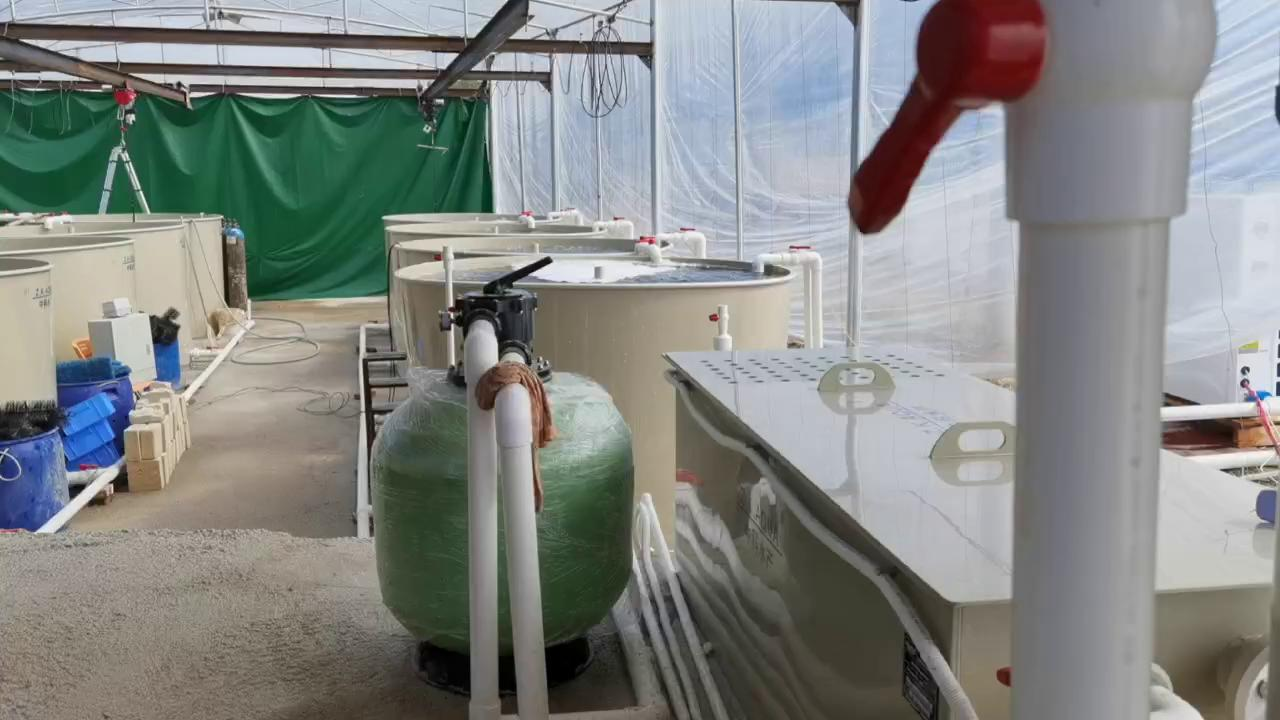

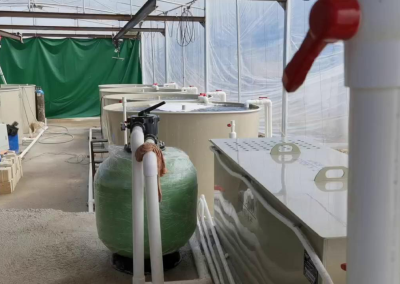

Project Guangdong

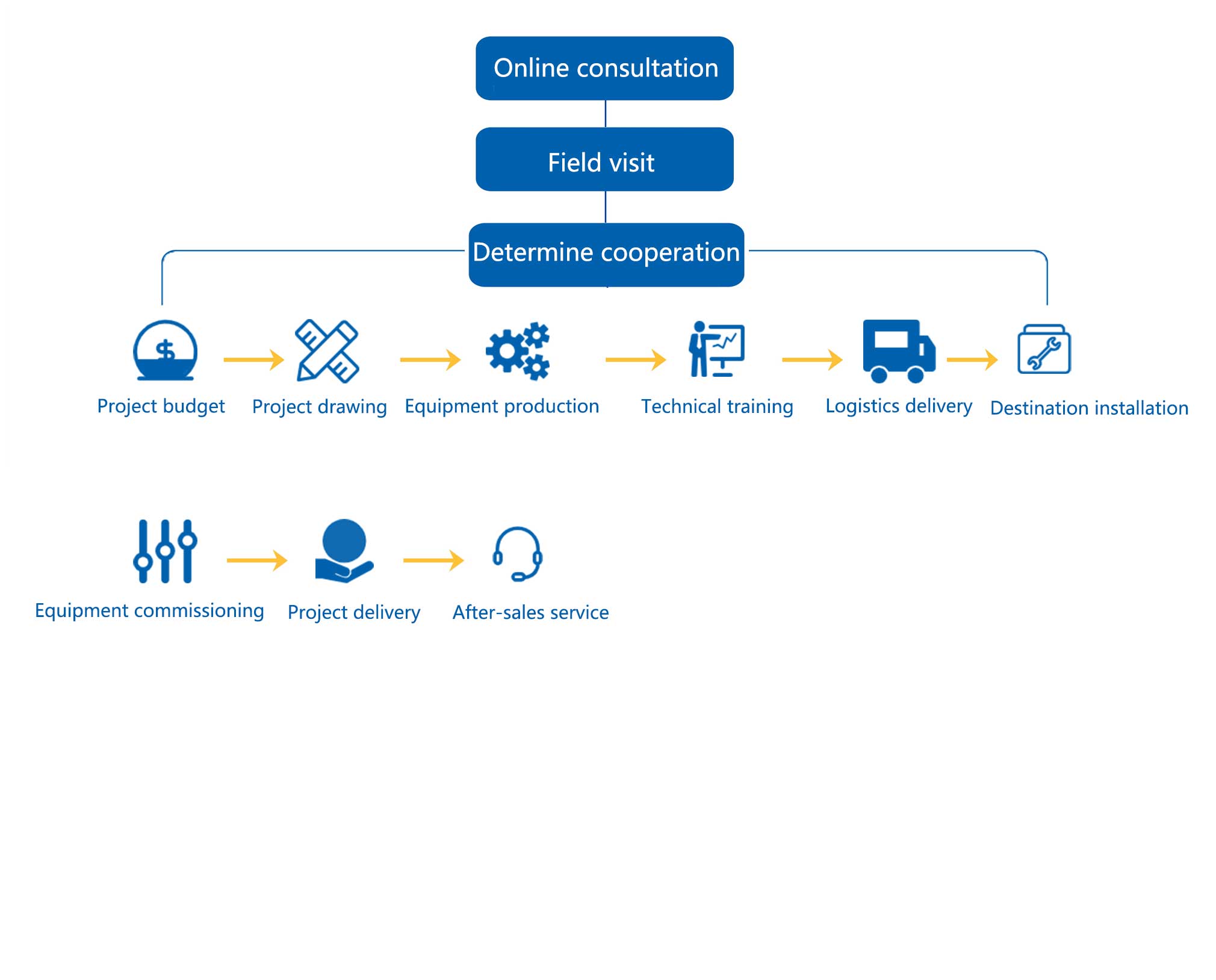

Service Process
