CHARACTERISTIC

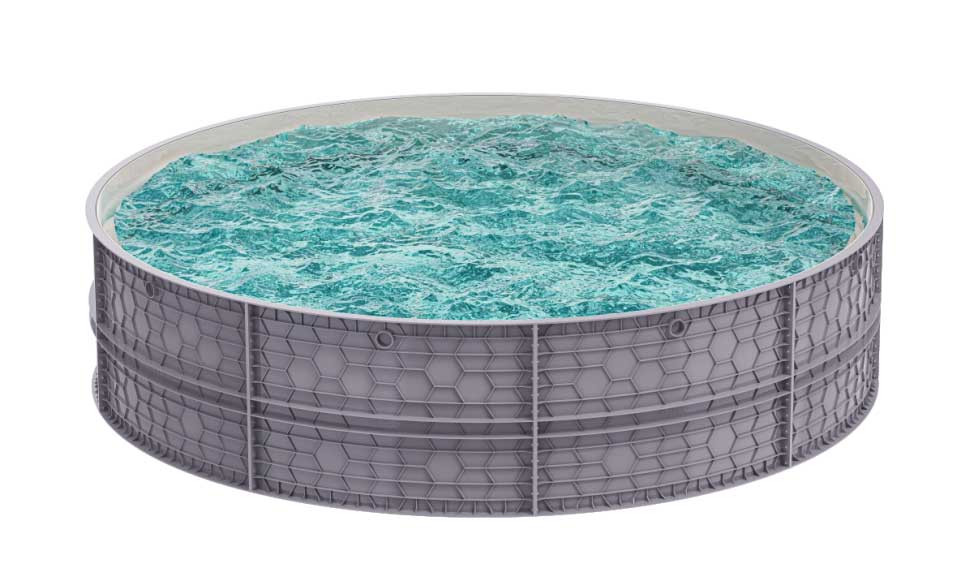

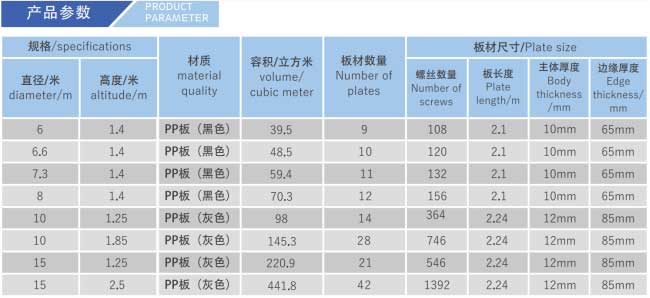

Beehive fish pond is an assembled fish pond, easy to transport and install. It is also suitable for mariculture.The Beehive PP Fish pond is made of PP material, which is non-toxic and tasteless. It has the characteristics of cold resistance, heat resistance, and saline-alkaline acid resistance. Each fish pond is made of multiple PP boards, which is convenient for transportation and installation. The honeycomb PP pond makes the fish pond more firm and not easy to deform. The advantages of PP pond: Reduce labor force,Saving labor costs. Alleviating the difficulty of farm recruitment and high wage costs. Reduce the cost of fish ponds. Alleviating the risks caused by water quality changes in fish ponds, minus soil pond worms harm to fish.

CHARACTERISTIC

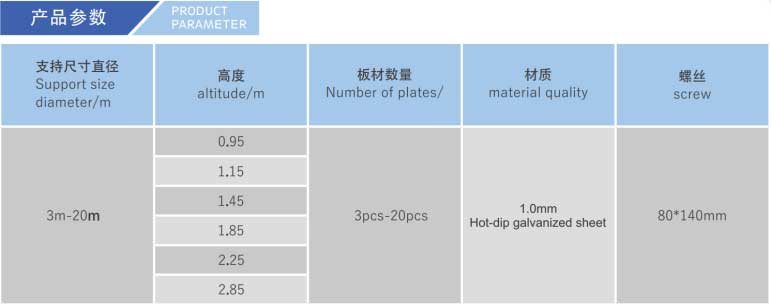

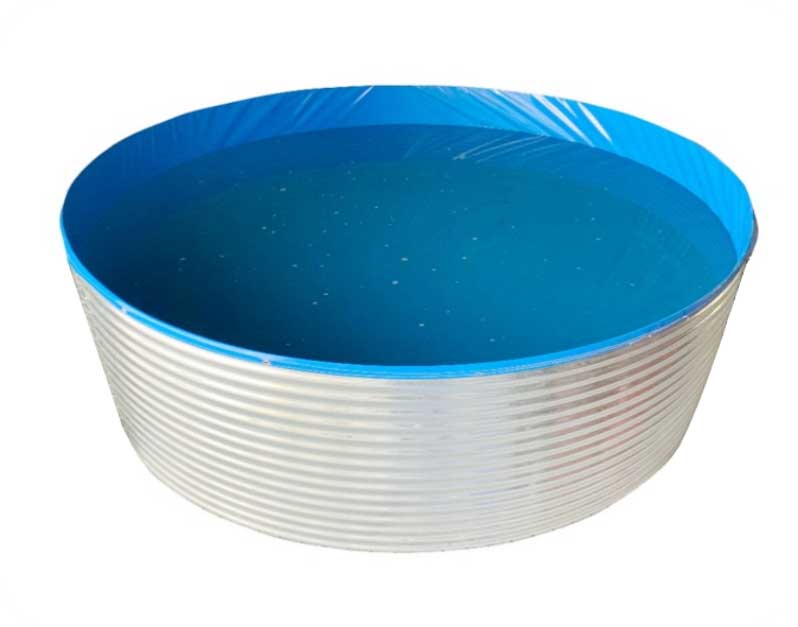

Galvanized sheet canvas fish pond is an assembled fish pond, which can be made of different specifications and sizes. Long service life, simple assembly, suitable for long-distance transportation, suitable for freshwater fish and shrimp farming, cost-effective.When installed locally, galvanized sheet canvas pond can be constructed for fish farms with minimal materials and tools.  This will speed up construction time, be less expensive to build and can be installed without a concrete foundation.

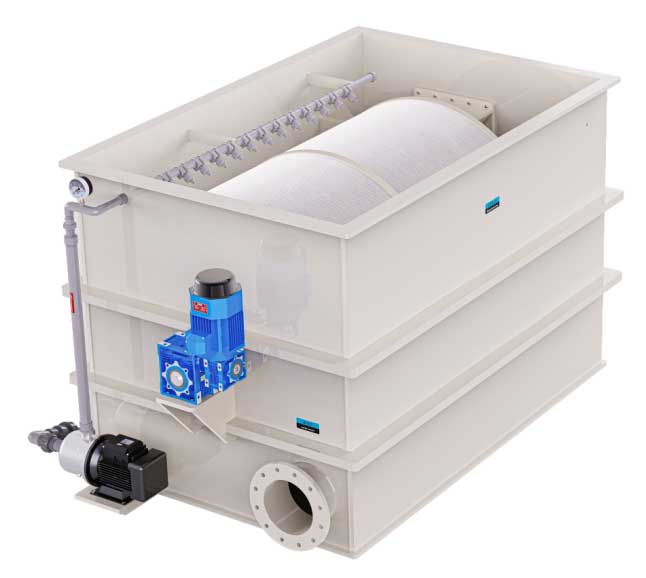

CHARACTERISTIC

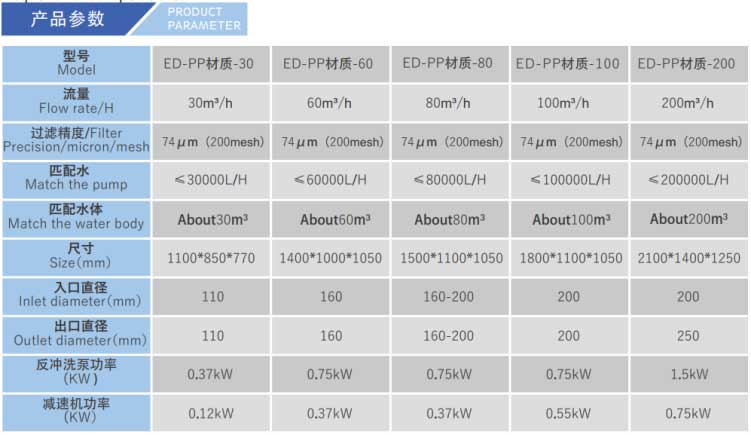

①The Drum Filter adopts the rotary drum technology to fully automatically backwash the pollutants in the filter

②Separately detachable mesh screen for easy inspection inside the drum

③The mesh screen separates the dirt, and the larger residue and particles can be removed by the automatic drum filter

④Continuous operation can reduce algae reproduction and discharge waste through the sewage tank.

⑤With simple operation, the self-cleaning system can operate and adjust itself, simplifying frequent manual operations.

FUNCTION

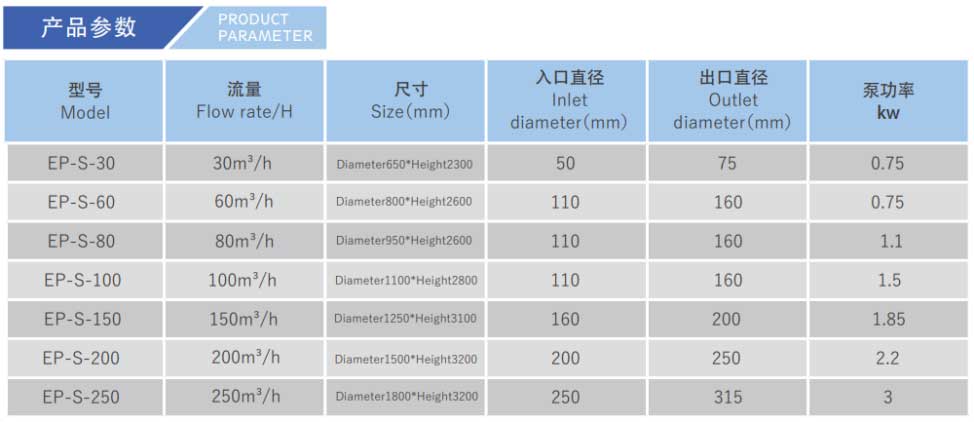

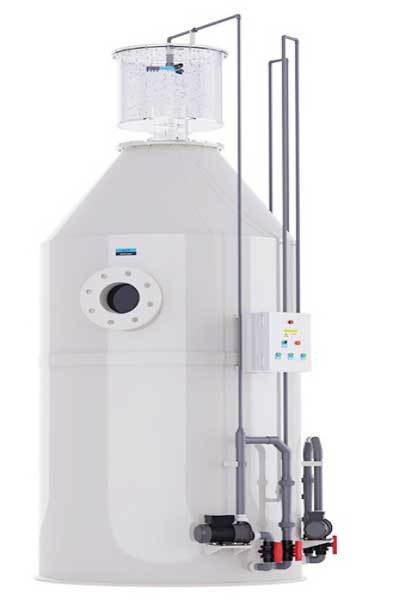

The protein skimmer also called a nitrogen generator, a foam splitter. It is to use the surface tension and electrostatic adsorption of microbubbles (diameter less than 1mm) to separate proteins (formed by the excrement of cultured organisms and food residues, etc.) and suspended particles dissolved in water from the water by adhesion and blowing off.
It is separated before it is decomposed into toxic waste, which reduces the burden on the biochemical system, thereby achieving the effect of water treatment.
Protein skimmers are widely used in industrial circulating water and water source treatment systems. The product adopts European technology, so that the water and air are fully mixed and a large number of microbubbles are generated in the water.
Innovative to ensure effective liquid residence time, combined with ozone combined technology, to achieve safe and efficient application effects within a controllable range.

CHARACTERISTIC

1. Multiple water vapor mixing technology, rich and delicate bubbles. more efficient;

2. Directly discharge foam without cleaning, more water-saving, more practical and environmental friendly;

3. Trouble-free design structure, no maintenance, long service life;

4. Additional function of discharging large particles;

5. Remove more than 80% of organic matter such as residual poisonous bait, feces, colloids, etc., reduce the load of biological treatment, and ensure water quality safety;

6. Improve the oxygen content and biological treatment efficiency in water;

7. Remove harmful gases and organic acids, stabilize the pH value of water;

8. The protein separator and ozone reactor have the functions of disinfection, sterilization and algae removal, and at the same time increase the effect of protein separation.

CHARACTERISTIC

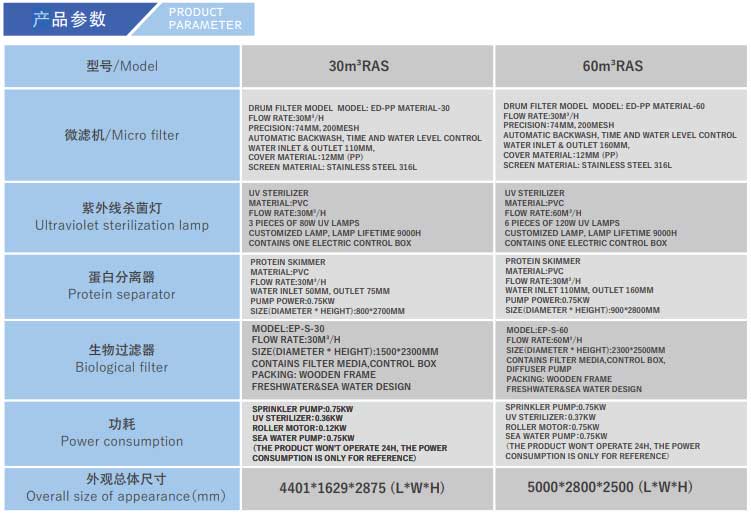

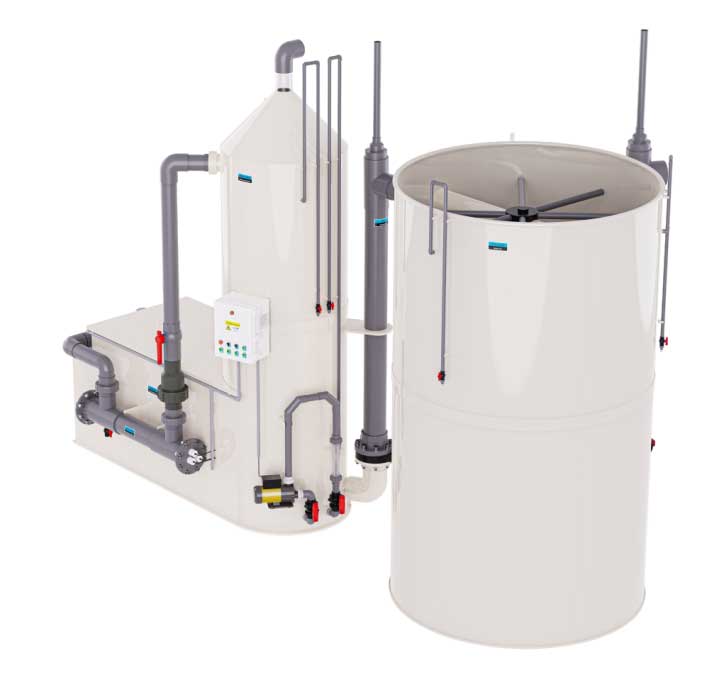

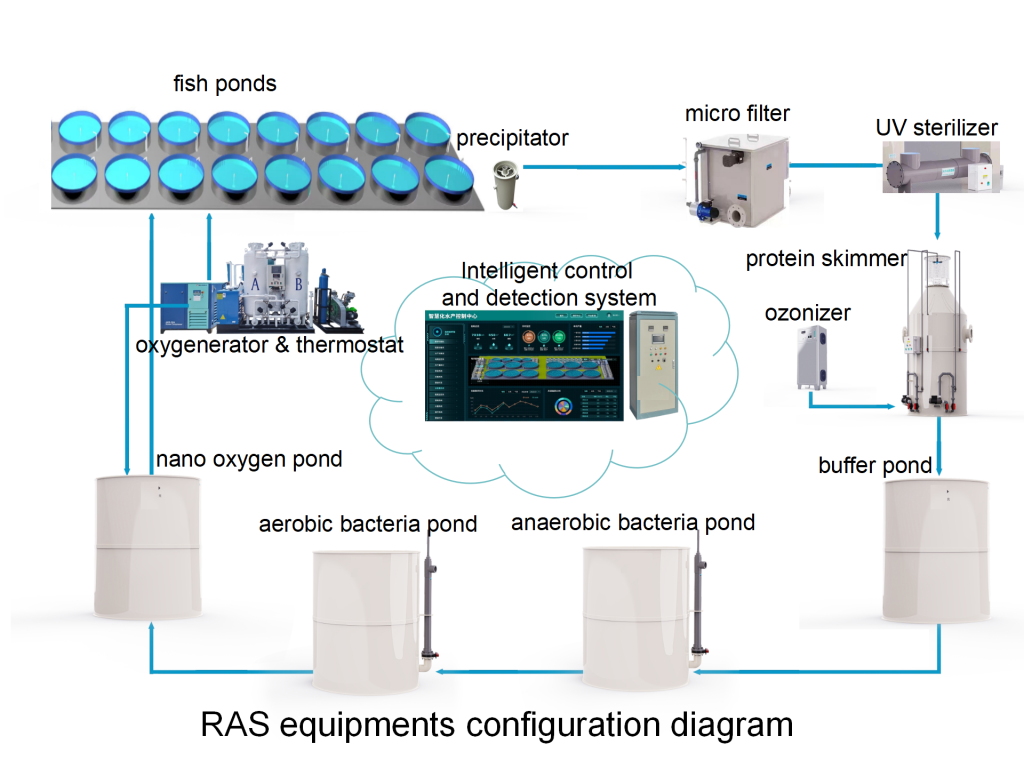

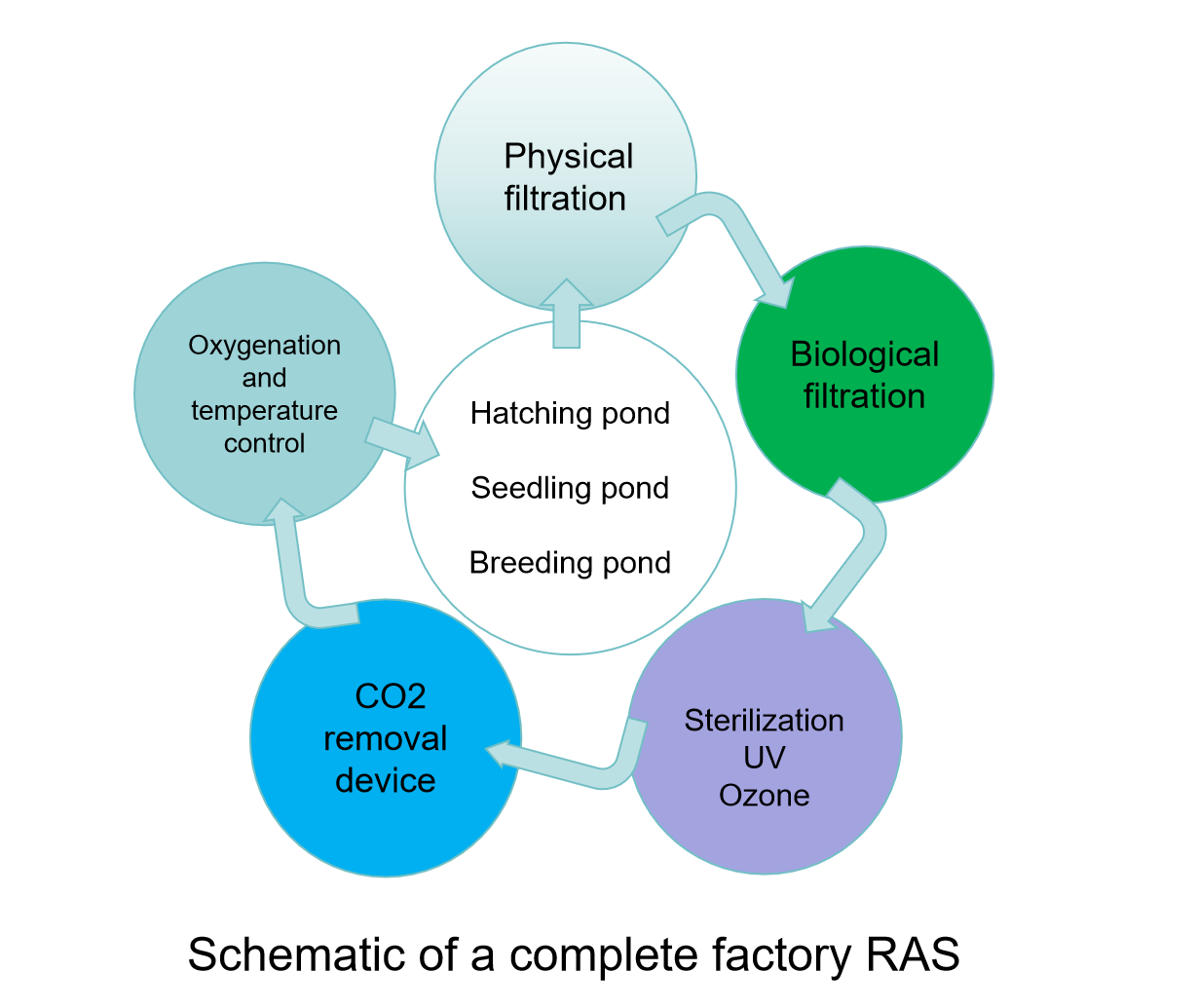

All-in-one RAS Equipment(Seawater type) is an environmentally friendly water treatment method.  With the rapid development of industry,A large number of industrial aquaculture projects,municipal sewage, swimming pool projects, etc. need to recycle water.

The treated water generally contains a large amount of suspended solids or dissolved substances.   After these substances enter the aquaculture water, they will be decomposed into ammonia, nitrite, hydrogen sulfide and other toxic substances for aquatic animals under the action of bacteria.

The treatment system begins with the mechanical filtration section. These devices filter out suspended solids in the water.  always used protein skimmer, drum filter for decomposition and separation;    Nitrifying bacteria will convert toxic substances such as ammonia nitrogen accumulated in water into non-toxic nitrate in 15-30 degrees, Under the right and stable conditions created by the devices, these bacteria can work for a long time.   Part of the circulating water treatment system also includes temperature control systems, sterilization systems, automatic monitoring systems, power and piping systems,etc.

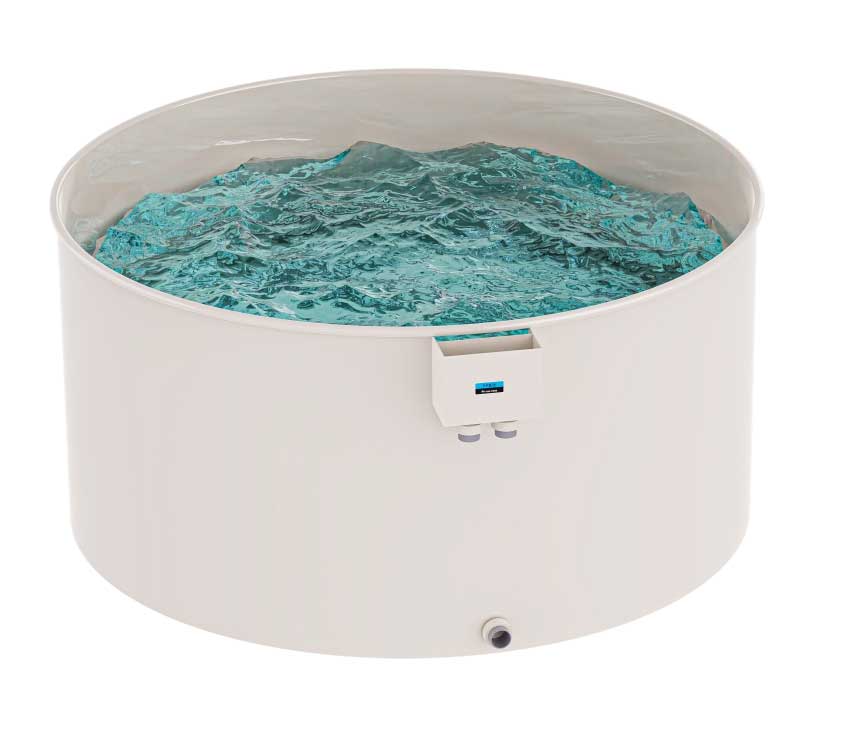

CHARACTERISTIC

①Food-grade PP material, environmentally friendly and non-toxic, smooth surface, corrosion resistance, aging resistance, high strength and long lifetime;
②The water inlet and outlet of the fish pond are conveniently connected, easy to operate and easy to install;
③The fish pond is designed with a conical bottom, and the upper part is equipped with an overflow port, which can take both bottom water and surface water at the same time,which is more convenient for the collection and discharge of aquaculture waste;
④The fish pond does not need to be painted and other operations, it can be used immediately after manufacture, saving time.
⑤Sustainable use, long service life.
⑥The fish pond is light and easy to move.

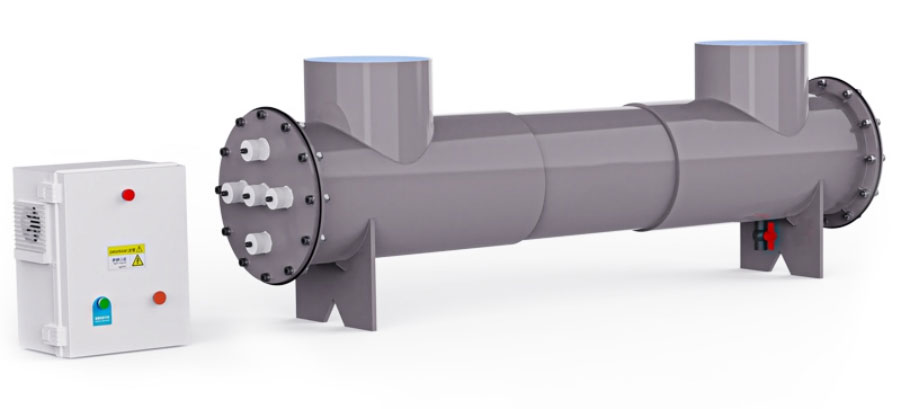

FUNCTION

Utilize the ability of ultraviolet photons to destroy the DNA structure of various viruses, bacteria and other pathogenic bodies in the water body, break various structural bonds in DNA or undergo photochemical polymerization reactions, thereby causing various viruses, bacteria and other pathogenic bodies to lose their replication Reproductive ability, achieve sterilization effect.

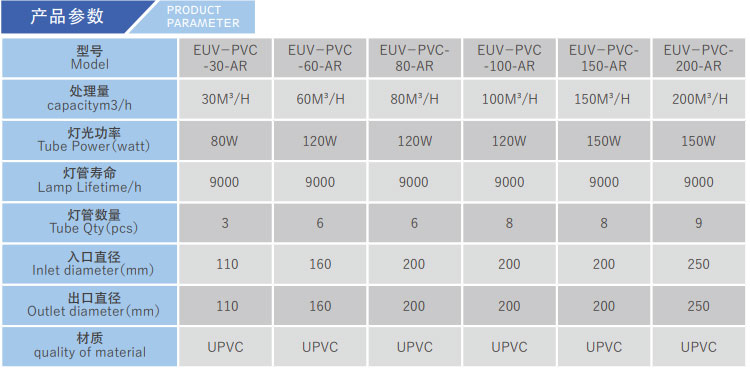

CHARACTERISTIC

① High efficiency: Effectively kill harmful bacteria such as algae and viruses, and the sterilization rate can reach 99%;
② High quality: domestic lamps are used, and the service life can reach 9000 hours;
③ Good stability: the equipment supports 24-hour continuous and stable operation;
④ High reliability: the utilization rate of ultraviolet output is as high as 95%, and the reliability of disinfection and sterilization is higher;
⑤Strong practicability: used in various industries, with extremely low operating costs, simpler operation and maintenance, small equipment size, and no noise;
⑥With observation port: You can check the working condition of the UV lamp tube. It is made of thickened tube, which has strong oxidation resistance, more corrosion resistance, and is more anti-aging than PP material.

CHARACTERISTIC

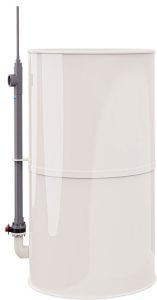

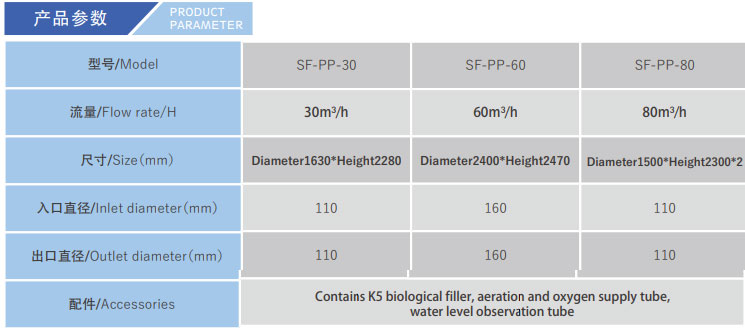

The Biological Filter as an important part of the whole recirculating aquaculture system, works together with other system units. It is used to remove dirt and gases in water, such as: NO2, NO3, NO4, CO, CO2, organic matter, etc., and convert them into pollution-free HO2, N2, CO2, etc. The biochemical filter barrel is a device for cultivating beneficial biochemical bacteria. It does not require civil engineering and can be used at any time. It is made of high-quality food-grade PP material, non-toxic and odorless, light and strong, and has a long lifetime. It adopts a three- to four-stage multi-layer filtration structure. , so that it has a large filtration area, small equipment volume, compact structure, high treatment efficiency, and filtration, biochemical treatment and sewage discharge are carried out at the same time, without affecting or interrupting the normal use of the system.

FUNCTION

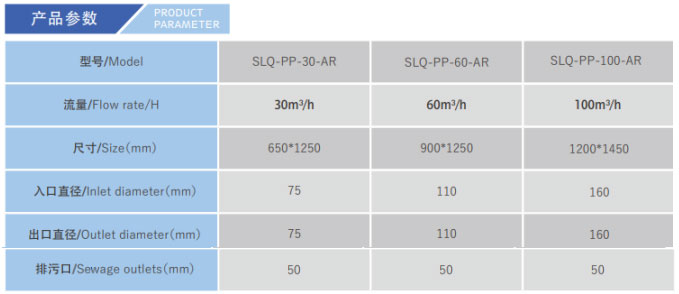

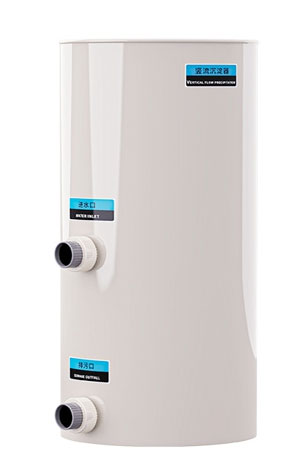

Vertical Flow settler is a vertical flow sedimentation tank for front-end treatment of water containing residual bait/fish dung in the fish pond. The plane figure of the pool body is circular, and the water enters the pool from top to bottom through the water inlet pipe set in the center of the pool. An umbrella-shaped baffle is set under the pipe to make the water containing residual bait/fish feces evenly distributed in the pool, and then flow along the entire process. The water section rises slowly, the suspended layer settles into the conical sedimentation bucket at the bottom of the pool, and the clarified water flows out from the surrounding overflow weir around the pool. A baffle and a scum tank are installed in front of the weir to retain scum and ensure the quality of the effluent. On one side of the pool, a mud discharge pipe is set against the wall of the pool to discharge the mud regularly by hydrostatic pressure. In the vertical flow settler, the direction of water flow is opposite to the direction of particle sedimentation, and its interception velocity is equal to the rising velocity of water flow, and the particles whose rising velocity is equal to the settling velocity will be suspended in the mixed liquid to form a suspension layer to intercept the rising particles and filter. Water flows vertically at a velocity from top to bottom.

CHARACTERISTIC

①Each fish pond is equipped with a small vertical flow settler, which occupies a small area.
②Reduce the load of subsequent processing equipment.
③ Divide solid waste and recycled water to maximize sedimentation efficiency.
④Easy and convenient installation.

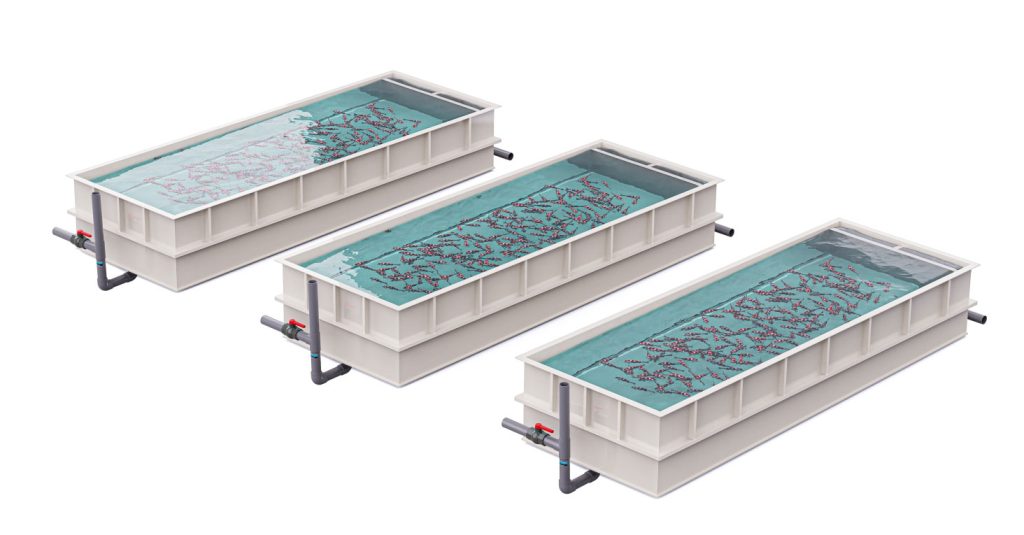

CHARACTERISTIC

1. Using polymer PP plastic material, it is safe, environmentally friendly and non-toxic, with smooth surface, corrosion resistance and aging resistance.
2. The characteristics of squareness and high space utilization rate; clean sewage discharge and easy operation.
3. It is suitable for seed hatching, seedling raising, seafood breeding and so on.
4. The inlet and outlet connections are convenient, and the installation and operation are simple.
5. Effective anti-leakage, anti-corrosion, anti-cracking, high strength, durable.
6. The size of the nursery tank is: 2*5*1, 2*6*1, 2*8*1, and the size can be customized freely.
